Signal Level Meters
Home >> Products>> Broadcasting &TV >> Signal Level Meters

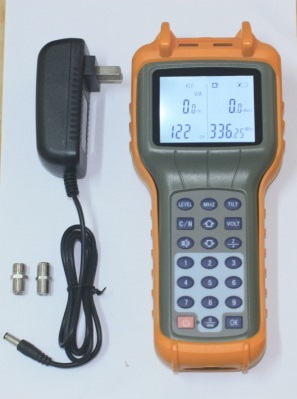

S110/S110D Signal Level Meter is an instrument used for the construction and maintenance of analog TV / digital TV, and the measurement of TV signal level and power level. It is widely applied in the routine maintenance of the CATV system. S110/S110D Signal Level Meter is compatible to both analog / digital channels, with strong comprehensive performances; it employs high brightness backlight operating modes, with clear LCD screens, dual-channel measurement display, so it is convenient and pragmatic; besides, numeric keypad input allows it easy to operate; S110/S110D is a compact, small light-weight portable signal level measuring
|
Signal Lever Meters correlation table |
||
|
Model No |
Constellation |
Main Parameter |
|
ZC-S110/S110D |
No |
Doulbe channel, A/V, C/N, Average Power, Trunk line Voltage, |
|
ZC-S200/200D |
No |
MER, BER, Tilt , A/V, C/N, Average Power, Trunk line Voltage, |
|
ZC-S1127D |
Yes |
Spectrum, MER, BER , Tilt , Channel Power, A/V, C/N, Average Power, Trunk line Voltage |
|
ZC-S1129/ZC-S1129D |
Yes |
Advanced spectrum, Full automatica scan , MER, BER , Tilt , V/A,C/N , Average Power ,Channel Power, Trunk line Voltage, Threshold, Alarms |
Technical Data
|
Model No |
ZC-S110 |
ZC-S110D |
|
Frequency / channel |
|
|
|
Frequency scope |
47~870MHz |
5~870MHz |
|
Channel |
U.S. Standard Channel USA STD-CATV |
|
|
Frequency accuracy |
+50 * 10E-6 (20 oC +5 oC) |
|
|
Level measurement |
|
|
|
Measuring range: |
30dBuV ~ 120 dBuV |
|
|
Measurement accuracy |
+2dB (20 oC +5oC) |
|
|
Resolution |
0.5dB |
|
|
Carrier-to-noise ratio measurement |
|
|
|
Measuring range |
20dB ~ 50 dB |
|
|
Signal input range |
>=85dBuV |
|
|
Measurement accuracy |
+ 3dB (20oC +5oC) |
|
|
Voltage measurement |
|
|
|
Input range |
1 ~ 100V (AC / DC) |
|
|
Measurement accuracy |
+2V |
|
|
Resolution |
1V |
|
|
Power supply |
|
|
|
battery |
7.2V/1500mAH rechargeable battery |
|
|
AC Supply: |
AC 100V-220V 50Hz-60Hz |
|
|
Working time |
6h |
|
|
Charging time |
3h |
|
