E1 Data com Transmission Analyzer
Home >> Products>> 2M/E1 Tester >> E1 Data com Transmission Analyzer

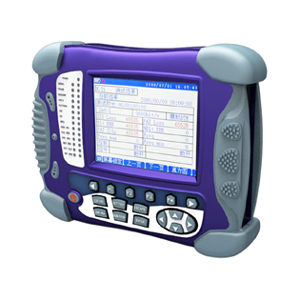

ZC-E4300 series 2M/Datacom Transmission Analyzer is a multi-functional and full- featured digital transmission system test device, designed for the installation test, engineering check and acceptance, daily maintenance of digital networks, mainly performing channel test, alarm analysis, fault finding and signaling analysis. In addition, this instrument further provides various protocol converters with one-way and bi-directional bit error test function. These capabilities make it ideal for field use.
Main Features
Handheld design and easy-to-use; High resolution backlit large color TFT LCD screen
Save/Recall of up to 7 user-defined setups and 99 sets of results
Test results uploaded, conserved and printed by PC Manager software
Run and stop testing can be controlled automatically by timer
Histograms analysis of alarm and error events
Upgradeable software via an integrated RS232C interface
ZC-E4300 series 2M/Datacom Transmission Analyzer Table
|
Item |
ZC-E4300A |
ZC-E4300C |
ZC-E4300E |
|
E1 Measurement |
Yes |
Yes |
Yes |
|
Datacom Measurement |
No |
Yes |
Yes |
|
Audio/Listen |
Yes |
Yes |
Yes |
|
Frequency Deviation |
No |
Yes |
Yes |
|
Pulse Mask |
No |
Yes |
Yes |
|
Co directional 64K |
Optional |
Optional |
Yes |
|
Ethernet |
Optional |
Optional |
Yes |
|
Jitter |
Optional |
Optional |
No |
|
Frame Relay |
Optional |
Optional |
Yes |
|
AC Power Adapter |
AC220V 50Hz/DC 9V 1A |
||
|
Rechargeable Batteries |
5*1.2V AA NiMH batteries |
||
|
Operating/Storage Temperature |
0oC~50oC/-20~+70oC |
||
|
Humidity |
5%~95% non-condensing |
||
|
Dimensions/Weight |
200*160*42mm/2kg |
||
Standard Configuration
| No. | Item | Qty |
| 1 | ZC-E4300 Series 2M Transmission Analyzers | 1 set |
| Attached files | ||
| 2 | User's manual | 1 pc |
| 3 | Software disc | 1 pc |
| Attached accessories | ||
| 4 | 75ΩCoaxial testing line | 1 pc |
| 5 |
BNC-L9 Testing line CESHIYI |
2 pcs |
| 6 | RS232 serial line | 1 pc |
| 7 | Special testing cable of data communication 1(V.24,RS-485,EIA-530,EIA-530A) | 1 pc |
| 8 | Special testing cable of data communication 2 (RS-449,V.36) | 1 pc |
| 9 | Special testing cable of data communication 3 (X.21) | 1 pc |
| 10 | Special testing cable of data communication 4 (V.35) | 1 pc |
| 11 | G.703 CO special testing cable (64Kb/s coaxial interface) | 1 pc |
| 12 | Power adapter | 1 pc |
| 13 | Data self-loop head | 1 pc |
| 14 | Switch cable | 1 pc |
| 15 | Handy-case | 1 pc |
| 16 | Serial printing line (optional) | 1 pc |
