WIFI fiber microscope

Product features

Long service life and good image quality

The internal structure of the ZC-720 WIFI optical microscope been redesigned to provide a longer service life.No matter how bad the working environment is, the internal optical device will not deteriorate and the display image quality will be consistent.

Using WIFI signal, the connection is more convenient and the signal is more stable

According to customers' feedback, the mobile phone is connected with WIFI signal, which is in line with modern intelligent working mode and more stable connectivity.No matter it is factory environment or construction site, our detector can guarantee stable and clear image.

Special image acquisition software, can take photos, take video and store

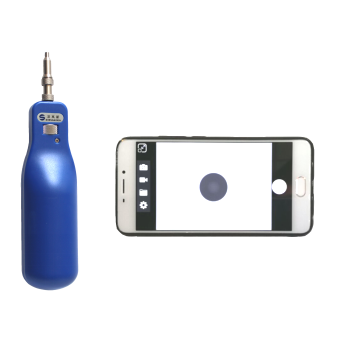

ZC-720 WIFI optical microscope transmits the image signal to the mobile phone. Through the developed image display software, the image can be displayed more clearly and it is more convenient to view different face conditions and satisfy various test environments.This software can take photos, take video and store it on the phone.

Can detect a variety of models of products

Can be equipped with a variety of adapter interfaces, which can meet the testing requirements of various optical fiber connectors, optical fiber transceiver modules, TOSA/ROSA components and other products.The newly added MT interface can detect MPO and MTP products, such as MPO, MTP adapter, 40G, 100G optical module, etc.The next step of high-density data center maintenance can be fully satisfied.

Technical parameters

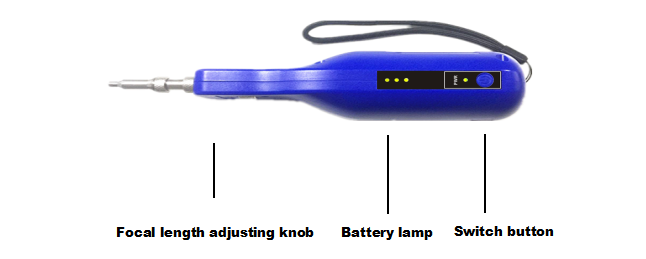

Operating instruction

l Long press the startup button and wait for startup.

l Turn on the phone and connect the WIFI signal of the test handle.

l WIFI connection is successful, open a dedicated APP, into the testing interface.

l Adjust the focus knob to make the image as clear as possible.

Product accessories
