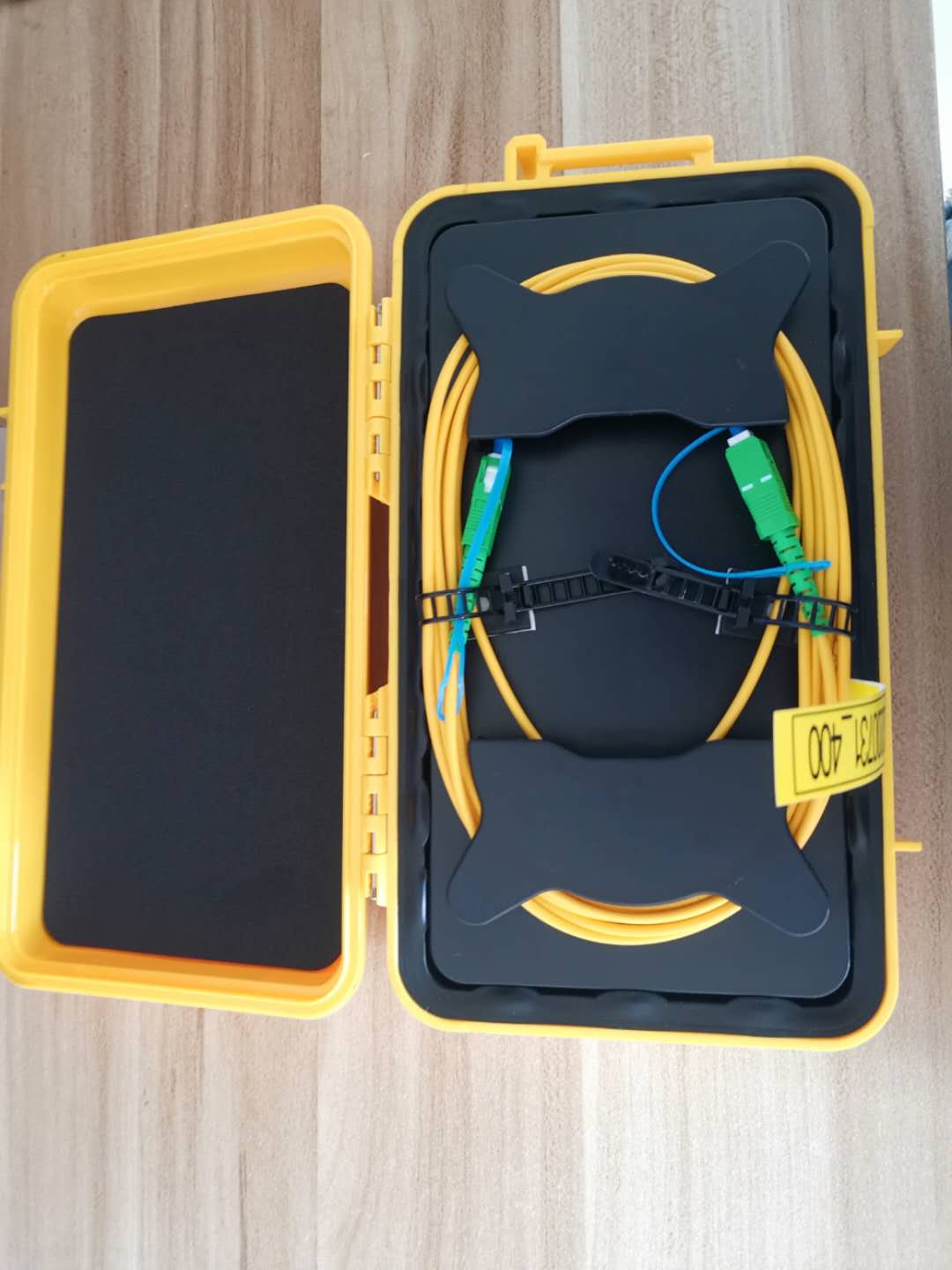

OTDR Launch Cable Box OTDR Dead Zone Eliminator

●Designed to aid in the testing of fiber optic cable when using an OTDR.
●The OTDR Launch Fiber box is used with Optical Time Domain Reflectometry(OTDR's) to help minimize the effects of the OTDR's launch pulse on measurement uncertainty.
●Available in many different configurations and fiber lengths.
Features
●SC/UPC SC/APC FC/UPC LC/UPC available,option for E2000/APC
●Pulse Suppressor Launch Box Delay Line Installation/Testing Training Calibration
●Compound Latch for positive seal and easy opening with locking feature
●Nonmetal construction will not dent corrode or conduce electricity
●Water-proof and dust-proof allowing the unit to be taken into almost any environment
●Case can house up to 2000 meters of fiber

●Auto Purge Valve for changes in altitude and temperature

Specification

Material SR Polypropylene

Weight 0.75 kg (without fiber)

Operating temperature -40° to +55°C

Typical Loss < 1dB @ 1310nm for 1000 meters

Length x Width x Height   9.37" x 5.56" x 2.62"
