Model Number

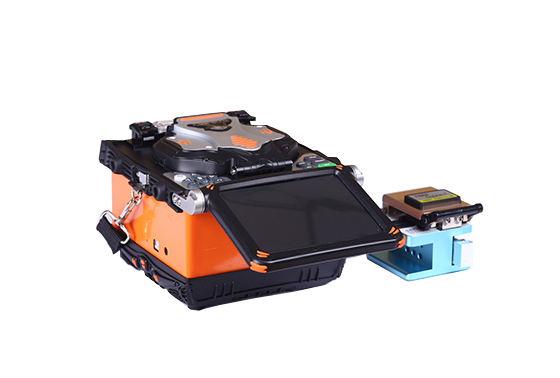

ZC-F800H

Applicable fibers

SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)

Average splice loss

0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，0.04dB(NZDS)

Return loss

60dB

Operating mode

 automatic, semi-automatic

Splicing time

Typical 9 sec, with standard SM fiber

Heating time

Typical 28sec

Fiber aligning method

Core aligning,clad aligning, manual aligning

Fiber diameter

Coating diameter 80～150μm；Coating diameter 100～1000μm

Fiber cleaved length

6 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm)

Lens magnification

Vertical double display: 310x; horizontal double display, 155x

Monitor

5.1 inch, 640*480 TFT color monitor

Tension test

2N

Applicable sleeves

60mm, 40mm and a series of micro sleeves

Battery capacity

Typical: 250 times of splice, it takes 3.0 hours to fully charge it (the machine is operable during charging process)

Battery life

Typical 300-500 cycles(splice and heat)

Power indicator

Screen display accurate remaining power

Electrode life

Typical 5000times,customer can change electrode by himself

Construction and illumination

Built-in high brightness, wide range of lighting, greatly convenient operation at night

Terminal

USB 1.1,   software upgrade via USB interface

Power supply

Li-battery 11.8V  , AC100-240V  DC12.6V/5.0A

Work environment

0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s

Dimension

169×150×123(mm)

Weight

1.8kg(no battery),2.1kg(battery)
