Features

Specefications

Model

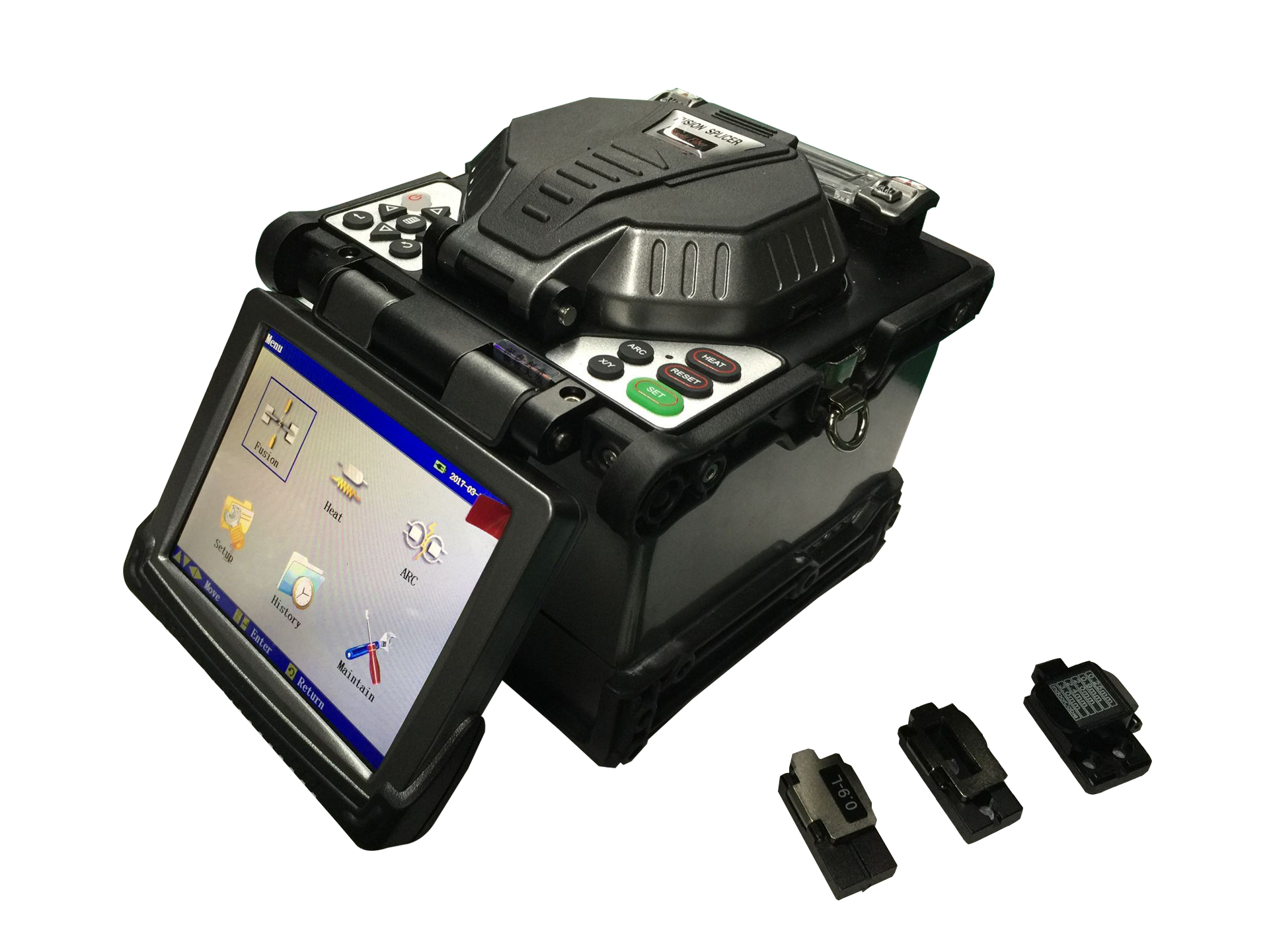

ZC-F600H with Fiber Holders

ZC-F600 for 0.25/0.9 fiber

Applicable fibers

SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)

Fiber cleaved length

6~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm)

Fiber diameter

Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm

Auto focusing

Available

Fiber aligning method

Core aligning, clad aligning, manual aligning

Average splice loss

0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS)

Splicing time

Typical 9 sec ,with standard SM fiber

Heating time

Typical 28 sec

Applicable sleeves

60mm, 40mm and a series of micro sleeves

Tension test

2N

Electrode life

Typical 5000times,customer can change electrode by himself

Battery capacity

Typical: 250 times of splice, it takes 3.0 hours to fully charge it (the machine is operable during charging process)

Lens magnification

Vertical double display: 310x; horizontal double display, 155x

Battery life

Typical 400 cycles (splice and heat)

Monitor

5.1 inch TFT color monitor

Terminal

USB 1.1,   software upgrade via USB interface

Operating condition

0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s

Splicing mode

Auto ,normal

Construction lighting

Built-in high-brightness, wide-range light substantially increases easiness of construction at night.

Power volume display

Real-time power volume display in the screen

Fiber cleaved angle threshold set

0.1 ~ 10.0 oC , 0.1oCstep

Power supply

Li-battery 12V  , AC100-240V  DC12.6V/5.0A

Dimension

L169*W152*H155mm

weight

2.4kg   2.9kg(battery)
