Fiber Test Equipment
Home >> Products>> Optical Instruments >> Fiber Test Equipment

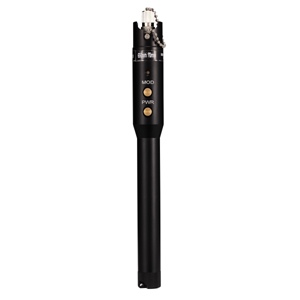

The ZC-VFL(1mw/5mw/10mw/20mw/30mw/40mw/50mw)is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables.
Finding the faults of OTDR
Key Feature
2.5mm universal connector
Operates either in CW or Pulsed
Constant output power
Lower Battery warning
Long battery life (up to 60 hours)
Crash-proof and dust-proof design for laser head
Laser case ground design prevents ESD damage
Burning testing to ensure the reliability.
Portable and rugged, easy to use
test range
1mw 2-3km
5mw 5km
10mw 10km
20mw 15-20km
30mw 20-30km
40mw 30-40km
50mw 40-50km
Specifications
|
Type |
ZC-VFLPen-type Visual Fault Finder |
|
Central Wavelength |
650nm+-10nm (635nm can be required on request) |
|
Emitter Type |
FP-LD |
|
Output Power |
Optional choice for 1mw, 5mw,10mw 20mw 30mw,40mw,50mw on actual needs |
|
Optical Connector |
2.5mm universal connector For 1.25mm connectors, FC (Male)-LC (Female) convertor can be optional on customer requests |
|
Operating Model |
Both CW and Pulse available |
|
Pulse Frequency |
2~3Hz |
|
Power Supply |
2 AAalkaline batteries |
|
Battery Operating Time |
60 hours |
|
Operating Temperature |
-10~+45 (oC) |
|
Storage Temperature |
-40~+70 (oC) |
|
Dimension (mm) |
15X180 |
|
Weight |
120g(Without battery) |
Remark: Colors can be customized on request when meets certain qty!
Standard Packages
|
MODEL |
INCLUDES |
|
ZC-VFL |
Main Unit (Original color), 2pcsAlkaline battery, User Manual, Cotton swabs and Soft Carrying case. |
