Fiber Test Equipment
Home >> Products>> Optical Instruments >> Fiber Test Equipment

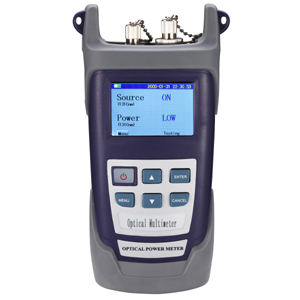

Integrates the functions of an intelligent optical power meter module and of a highly stable light source module in one unit which can perform closed-loop tests by incorporating both modules. Individual regimes of operation can also be manually chosen using menu operation to switch functions. A perfect combination to make your optical fiber tests a lot more convenient.
Features
Includes all the outstanding functions of handheld intelligent power meter(ZC-PM300)
Includes all the outstanding functions of handheld stable light source(ZC-LS300)
Switching of the power meter function and that of the light source by menu operation
Different light sources and power meters can be built into ZC-OM3207
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
|
Model |
ZC-OM3207 |
|||||
|
|
||||||
|
A |
B |
C |
||||
|
Power Meter + Light Source |
Laser Source + Power Meter |
Light Source + Power Meter + Laser Source |
||||
|
Power Meter |
||||||
|
Measuring Range(dBm) |
-70~+10/-50~+26 |
|||||
|
Detector type |
InGaAs |
|||||
|
Uncertainty (dB) |
+0.2(5%) |
|||||
|
Calibration wavelength (nm) |
850,980,1300,1310,1490,1550,1625 |
|||||
|
Display precision (dB) |
0.01 |
|||||
|
Light Source |
||||||
|
Output wavelength (nm) |
1310/1550;650(other optionl) |
|||||
|
Accuracy |
+10 nW(5%) |
|||||
|
SM Output Power(dBm) |
>= -7dBm |
|||||
|
MM Output Power(dBm) |
>= -7dBm |
|||||
|
Laser Source(VFL function) |
||||||
|
Output Power mw |
Output Power 10mw(5,20,30 option) |
|||||
|
General Specification |
||||||
|
Communication |
RS232 |
|||||
|
Operating Temperature |
-10~+60 |
|||||
|
Storage Temperature |
-25~+70 |
|||||
|
Battery Operating Time |
>15h |
|||||
|
Display |
2.4TFT LCD |
|||||
|
Dimension (mm) |
190*100*48 |
|||||
|
Power Supply |
Li battery (9V) |
|||||
|
Weight g |
280 |
|||||
