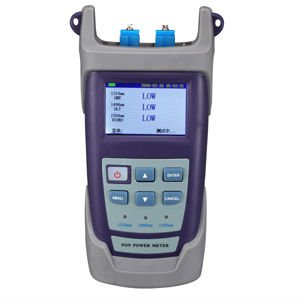

Fiber Test Equipment
Home >> Products>> Optical Instruments >> Fiber Test Equipment
Features
. Providing simultaneous measurement at all three wavelengths
(1490nm, 1550nm&1310nm )
. Burst mode measurement at 1310nm wavelength
. Large LCD screen with backlight function
. 10 minutes Auto-off function
. Six calibration wavelength available when tested as Normal OPM
(850,1300,1310,1490,1550&1625nm)
. 10 different threshold sets;
. 3 Colors LED light Green, Yellow or Red represent 3 types of signal conditions Pass, Warn or Fail.
. Added User self-calibration function in software which used to calibrate the PON module or set the threshold value.
. Added Factory Default function in software which enable all the customers setting back to the factory setting
|
Model NO |
ZC-P100 |
||
|
Measurement wavelength |
1310 upstream measurement |
1490 downstream measurement |
1550 downstream measurement |
|
Pass Zone(nm) |
1260~1360 |
1470~1505 |
1535~1570 |
|
Measurement Range(dBm) |
-40~+10 |
-40~+10 |
-40~+20 |
|
Isolation1310nm(dB) |
- |
>40 |
>40 |
|
Isolation 1490nm(dB) |
>40 |
- |
>30 |
|
Isolation 1550nm(dB) |
>40 |
>40 |
- |
|
Measurement Accuracy |
|||
|
Connatural uncertainty(dB) |
+0.5 |
||
|
Connatural uncertainty(dB) |
<+0.25 |
||
|
Linearity(dB) |
+0.1 |
||
|
Passing through insertion Loss(dB) |
<1.5 |
||
|
Normal Optical Power Meter Module |
|||
|
Display |
128*64 |
||
|
Measurement Unit |
dB/dBm/ xW |
||
|
Resolution (dB) |
0.01 |
||
|
Power Supply |
Li battery (9V) |
||
|
Fiber Type |
SM |
||
|
Measurement Range(dBm) |
-10~600C |
||
|
Store Range(dBm) |
-25~700C |
||
|
Size (mm) |
210 x 115 x 55 |
||
