Fiber Test Equipment
Home >> Products>> Optical Instruments >> Fiber Test Equipment

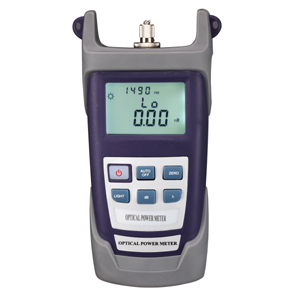

ZC-PM300 Handheld Optical Power Meter is a newly designed fiber optic tester, which aims at the installation, engineering acceptance and maintenance of fiber network.
Combined with ZC-LS300 handheld optical light source, it offers a quick and accurate testing solution on both SM and MM fibers.
Features
. 2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.
. Intelligent backlight
. Reference power level can be set up and stored
. User self-calibrating function
. Auto-off function
. Up to 240hrs battery life
Specifications
|
Model |
ZC-PM300A |
ZC-PM300B |
|
Calibration Wavelength(nm) |
800~1700 |
|
|
Detector type |
InGaAs |
|
|
Detector Size |
0.3mm |
|
|
Measurement Range(dBm) |
-70+10 |
-50+26 |
|
Uncertainty (dB) |
+0.2(5%) |
|
|
linearity (dB) |
0.01 |
|
|
Display resolution(dB) |
0.03 |
|
|
Wave ID nm |
850,980,1300,1310,1490,1550,1625 |
|
|
Resolution(dB) |
Linear 0.1% or Non-linear 0.01dBm |
|
|
Connector |
FC/PC ( Interchangeable FC/SC/ST connectors can be optional) |
|
|
Alkaline battery |
3AAA 1.5V or Li battery (7.4V) |
|
|
Power Adapter(V) |
8.4 |
|
|
Battery Operating time (h) |
240 without backlight |
|
|
Operation Temperature(oC) |
-10(oC) +60 |
|
|
Storage Temperature(oC) |
-25(oC)+70 |
|
|
Dimension(mm) |
172*82*33 |
|
|
Weight(g) |
310 |
|
Standard Packages
|
MODEL |
INCLUDES |
|
All ZC-PM300 Models |
ZC-PM300 Optical Power Meter, Lithium battery and AA battery option, Power Adapter（only for lithium battery）, User Manual, Cotton Stick and Soft Carrying Bag. |
