ZCNK2000 Smart Series

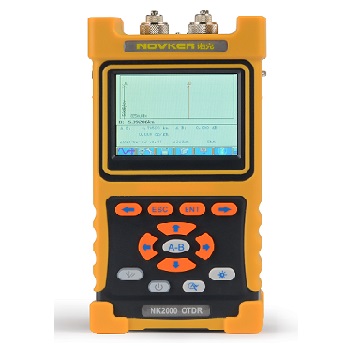

Hand-held Optical Time Domain Reflectometer
Main features:
Ø The novel and beautiful structural design of the appearance.
Ø The most convenient operation mode in the industry is as simple as available.
Ø ultra-short event dead zone can test the wire jumper of the optical fiber.
Ø It can test the circuit with light and give an alarm, avoiding existence of the equipment whose signal light is damaged in the optical fiber tested.
Ø High-power visible laser fault location function is equipped inside.
Ø USB interface can transfer the documents and make the report forms fast.
Ø Universal light output interface which is easy to be replaced enables a variety of interface tests.
Ø The working duration of more than 8 hours enables long-time field construction.
Ø Multiple choices of wavelengths and dynamic ranges best meet the requirement of the users.
Ø Highly intelligent analytical software can accurately recognize the melting point of the fault. The junctor may bend.
Technical Specification:
|
Model Item |
ZCNK2000 Series |
|
Optical fiber type |
Single-mode |
|
Central wavelength（nm） |
1310/1550
|
|
Maximum dynamic range(dB) |
28/26 |
|
Event dead zone（m） |
1 |
|
Attenuation dead zone（m） |
10 |
|
Display screen type |
3.5 inch color LCD, operation of the touch screen |
|
Optical interface |
FC/UPC (can be interchanged to SC or ST) |
|
Test range （km） |
60km~80km |
|
Pulse width（ns） |
10、30、50、100、275、500、1000、5000、10000 |
|
Ranging accuracy（m） |
± (1m+ sample interval +0.005%×distance) |
|
Attenuation measurement （dB/dB） |
±0.05 |
|
Reflection measurement （dB） |
±5 |
|
Data storage |
≥800 testing curves |
|
Communication interface |
USB |
|
Visible red light source |
|
|
Output power |
≥2mW |
|
Testing distance |
≥5km |
|
Environmental adaptability |
|
|
Power supply mode |
AC/DC adapter: alternating current:100V~240V (1.8A), 50/60Hz direct current: 19V±1V（2A） Internal lithium ion battery groups: 8.4V，5200mAh |
|
Working duration of the battery |
≥8hours |
|
Working temperature |
-5℃~50℃ |
|
Preserve temperature |
-20℃~70℃ |
|
Weight |
≤1kg |
|
Volume |
208mm×110mm×56mm |
Standard Configuration
|
Number |
Name |
Quantity |
|
1 |
ZCNK2000 OTDR |
1 |
|
2 |
Power line |
1 |
|
3 |
AC/DC power adapter |
1 |
|
4 |
Product qualification certificate |
1 |
|
5 |
User manual |
1 |
|
6 |
Disk (including simulation analysis software) |
1 |
|
7 |
Special bag for the instruments |
1 |
Note: The standard configuration of OTDR interface type is FC/UPC. The type of FC/APC is optional.
