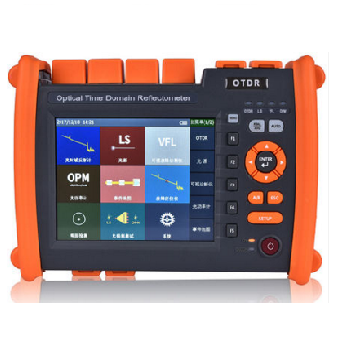

Single mode handheld high precision OTDR
Features
1. Fiber Type:Single-Mode Fiber
2.OPM+LS+VFL multi function in 1 machine
3.Test Range:80-100KM
4.Ranging accuracy:±(0.75m+sampling interval+0.005% × test distance)
5.Date storage:2000 touch screen
|
Model
|
Multi-Function Optical Time Domain Reflectometer |
|
ZCNK5600 |
|
|
Fiber Type |
SM |
|
Display |
5.8 inch color LCD with touch screen |
|
Wavelength |
1310/1550nm |
|
Maximum dynamic range |
32/30dB 80-100KM |
|
Event blind zone |
1m |
|
Attenuation dead zone |
6m |
|
Measuring range |
500m /1km /2km /4km /8km /16km /32km /64km /128km /256km |
|
Measuring pulse width |
5ns / 10ns/ 50ns/ 160ns/ 320ns/ 500ns/ 1000ns/ 5000ns/ 10000ns/ 20000ns |
|
Ranging accuracy |
±（0.75m+ Sampling interval +0.005％× Test distance） |
|
Loss precision |
±0.05dB/dB |
|
Reflection accuracy |
±3dB |
|
Data storage |
≥2000 |
|
Interface type |
FC / PC (Replaceable SC、ST) |
|
Communication interface |
USB、mini-USB、10M/100M Ethernet |
|
VFL output |
≥5mW |
|
LS output |
≥-5dBm |
|
OPM |
+26dBm ～ -50dBm（Replaceable：+6dBm ～ -70dBm） |
|
Power supply mode |
AC/DC Adapter：AC：100V ～ 240V，50/60Hz，0.6A; Lithium battery：7.4V 6700mAh |
|
Otepmepraetriantgure |
-5℃～ 50℃ |
|
Storage temperature |
-20℃～ 70℃ |
|
Relative humidity |
0 ～ 95％ Non condensation |
|
Weight |
≤1.1kg |
|
Volume |
227mm×160mm×70mm |
Packing list
|
Num |
Name |
Quantity |
|
1 |
OTDR host |
1 |
|
2 |
AC/DC power adapter |
1 |
|
3 |
Cortical handle |
1 |
|
4 |
U disk (containing client simulation analysis software) |
1 |
|
5 |
Touch pen |
1 |
|
6 |
Data line |
1 |
|
7 |
OTDR SC Transfer interface |
1 |
|
8 |
OPM SC Transfer interface |
1 |
|
9 |
User's Manual |
1 |
|
10 |
Test Report |
1 |
|
11 |
Warranty card and Certificate |
1 |
|
12 |
Clean cotton swab |
1 |
|
13 |
Special backpack for instrument (containing suspenders) |
1 |
