Fiber Test Equipment
Home >> Products>> Optical Instruments >> Fiber Test Equipment
Features
Provides 1~4 output wavelengths which can be optional according to customers needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz
modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display supports night operation
Compact size and decent appearance
Large LCD, easy operation
Applications
Maintenance in Telecom
Maintenance CATV
Test Lab of optical fibers
Other Fiber Optic Measurements
Specifications
Type |
LS300A |
LS300B |
LS300BB |
LS300C |
LS300D |
LS300E |
LS300F |
||
Wavelengths(nm) |
1310/1550nm |
1310/1490/ 1550nm |
1310/1490 1550nm |
850/1310/ 1550nm |
1300/1310 1550nm |
850/1300/ 1310/1550nm |
850/1300nm(for OEM) |
||
Emitter Type |
FP-LD,LED or others please specify |
|
|
||||||
Output Power(dBm) |
-6~-7(1310/1550nm),>0 (650nm) |
|
|
||||||
Spectral Width(nm) |
|
|
|
||||||
Output Stability |
+0.05dB/15mins; +0.1dB/ 8hours |
|
|
||||||
Modulation Frequencies |
CW / 2(650nm) / 270, 1K,2K (1310nm/1550nm) |
|
|
||||||
Optical Connector |
FC/PC ( Interchangeable FC/SC/ST connectors can be optional) |
|
|
||||||
Power Supply |
Alkaline Battery(3 AA 1.5V batteries) |
|
|
||||||
Battery Operating Time(hour) |
45 |
|
|
||||||
Operating Temperature(oC) |
_ 10 ~ +60 |
|
|
||||||
Storage Temperature(oC) |
_ 25 ~ +70 |
|
|
||||||
Dimension(mm) |
172*82*33 |
|
|
||||||
Weight |
295g |
|
|
||||||
Recommendation |

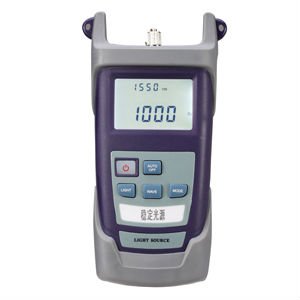

ZC-LS300 Handheld Light Source is designed for optimal use with ZC-PM300 Optical Power Meter for measuring optical loss on both single mode and multimode fiber cable. |
|
|
ZC-LS300B Output Power(dBm) is -7dBm,ZC-LS300BB is 0 dBm, LS300F is OEM mode
